Detailed

CJ2 programmable controller: a full range of features to provide high performance from device control to information processing!
characteristic：
No more technical innovation to upgrade
As an advanced equipment manufacturer, you need to constantly improve the intelligent and flexible equipment, in order to maintain the competitiveness of the market. At the same time, you also need to ensure that the equipment used for the first time from the start from first to last perfect operation, no danger of anything going wrong.
CJ2 is a market leader in the field of modular controllers for many years of rich experience in crystallization, representing a logical new chapter in the design of the controller. It offers superior performance, faster I/O response, and super extensibility, so you just have to have a series of. In addition, you can quickly and easily complete the programming, debugging tasks, the network has become more rapid, more easy to operate.
CJ2 in addition to the direct substitution of any CPU CJ1, it can also provide the following significant advantages:
Openness
Data communication through standard Ethernet port with EtherNet/IP data link function.
Advanced motion control
CJ2 unit supports multi axis synchronous control, which can replace expensive motion controller.
high speed
More rapid implementation of the program and the direct I/O refresh to achieve a flexible device control.
by knowing one method you will know all
Because of all the PLC Series in a wide variety of CPU adopts the unified architecture, so you only need a series of learning. (12.
High flexibility
The use of a variety of compatible CJ1 series I/O cell types (nearly 100) to allow PLC to meet your needs.
CPU kinds of rich and complete

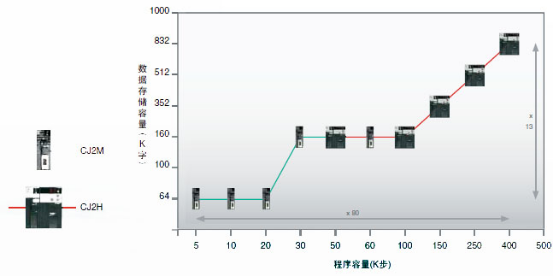

To lead the industry in the equipment manufacturing industry, you need to continue to meet the needs of end users. Shorten the production cycle, to achieve more excellent quality management and more sophisticated tracking capability requires a faster speed and higher capacity. As a result, the CJ2 series offers a diverse range of CPU to meet a variety of mission requirements. From the 5K step program capacity, 64K word storage capacity, up to 500K step program capacity, 832K word storage capacity, can be provided.

high-precision
In addition to the more superior performance of the CPU processing, OMRON also added a 20 s conversion time analog input unit and other high-speed I/O unit. In addition, the new PLC directive also provides direct access to the high speed I/O unit. In the end, the real-time reliability is greatly improved.

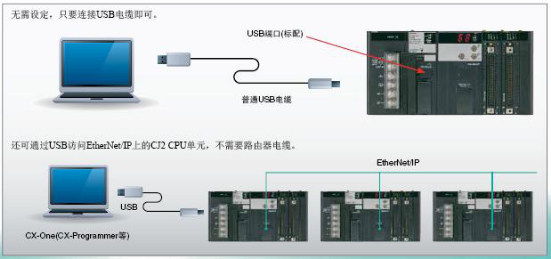

Easy connection through USB

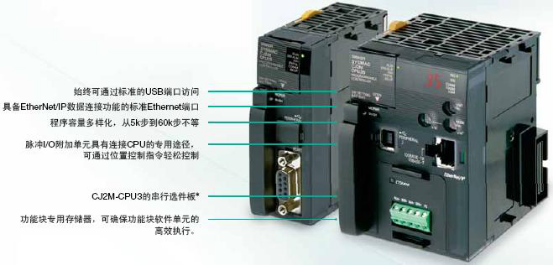

CJ2M basic equipment automation
CJ2M series is the most suitable for packaging machines and general equipment automation needs. Ethernet and RS-232C/422/485 interface built-in USB port and optional CPU to ensure connectivity.

Pulse I/O module
Loading optional pulse I/O module can be achieved through the following aspects of any CPU CJ2M function extension:
- interrupt input
- quick response input
- high speed counter input
Incremental encoder input
- pulse frequency output
-PWM output
Each CPU can be installed with 2 modules, allowing direct control of the 4 axes of motion. With special instructions, the PLC program can directly control these axes without communication relay.

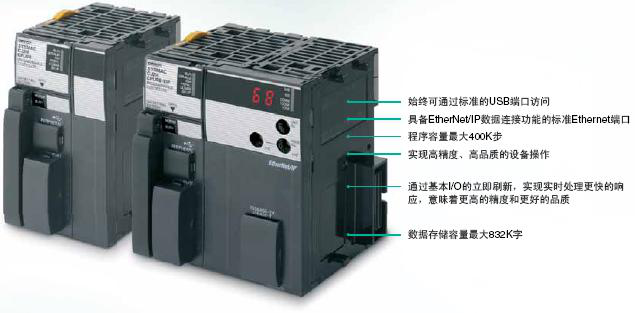

For high speed and high capacity CJ2H
The CJ2H series is the ideal choice for the high speed sorting of the conveyor and the image processing and inspection of the electronic components.
Advanced motion control is also simple.
CJ2H advanced motion control avoids the use of expensive motion controllers. Only using five positioning control units (high speed type) can be used to achieve a maximum of 20 axis synchronous control. Moreover, only the electronic cam function block is stuck to the synchronous interrupt task window, and can be easily realized.

Product specifications:

Common module:

CJ2M-CPU35

CJ2M-CPU34

CJ2M-CPU33

CJ2M-CPU32

CJ2M-CPU31

CJ2M-CPU15

CJ2M-CPU14

CJ2M-CPU13

CJ2M-CPU12

CJ2M-CPU11

CP1W-CIF01

CP1W-CIF11

CP1W-CIF12

CJ2M-MD211

CJ2M-MD212

CJ2H-CPU68-EIP

CJ2H-CPU67-EIP

CJ2H-CPU66-EIP

CJ2H-CPU65-EIP

CJ2H-CPU64-EIP

CJ2H-CPU68

CJ2H-CPU67

CJ2H-CPU66

CJ2H-CPU65

CJ2H-CPU64

XG4M-4030-T

XG5N-401

XG5W-0232

XG5W-0232-R

XY2B-7007

XW2R-J40G-T

XW2R-E40G-T

XW2R-P40G-T

XW2Z-100K

XW2Z-150K

XW2Z-200K

XW2Z-300K

XW2Z-500K

XW2B-20J6-8A

XW2B-40J6-9A

XW2Z-050J-A33

XW2Z-100J-A33

XW2Z-100J-B31

XW2Z-200J-B31

XW2Z-050J-A33

XW2Z-100J-A33

XW2Z-100J-B32

XW2Z-200J-B32

XW2Z-100J-A26

XW2Z-100J-B17

XW2Z-200J-B17

XW2Z-100J-A26

XW2Z-100J-B5

XW2Z-200J-B5

XW2Z-050J-A27

XW2Z-100J-A27

XW2Z-100J-B4

XW2Z-200J-B4

CJ1W-BAT01

CJ1W-TER01

PFP-M

CJ1W-PA205C

CJ1W-PA205R

CJ1W-PA202

CJ1W-PD025

CJ1W-PD022

CJ1W-ID201

CJ1W-ID211

CJ1W-ID212

CJ1W-ID231

CJ1W-ID232

CJ1W-ID233

CJ1W-ID261

CJ1W-ID262

CJ1W-IA201

CJ1W-IA111

C500-CE404

C500-CE405

C500-CE403

C500-CE241

C500-CE242

C500-CE243

XG4M-4030-T

XG5N-401

XG4M-2030-T

XG5N-201

XW2R-J34GD-C1

XW2R-J34GD-C2

XW2R-E34GD-C1

XW2R-E34GD-C2

XW2R-P34GD-C1

XW2R-P34GD-C2

G70D-VSOC16

G70D-VFOM16

G70D-SOC08

G70D-SOC16

G70D-SOC16-1

G70D-FOM16

G70D-FOM16-1

G70R-SOC08

G7TC-IA16

G7TC-ID16

G7TC-OC08

G7TC-OC16

G7TC-OC16-1

G70A-ZOC16-3

G70A-ZOC16-4

CJ1W-OC201

CJ1W-OC211

CJ1W-OA201

CJ1W-OD201

CJ1W-OD203

CJ1W-OD211

CJ1W-OD213

CJ1W-OD231

CJ1W-OD233

CJ1W-OD234

CJ1W-OD261

CJ1W-OD263

CJ1W-OD202

CJ1W-OD204

CJ1W-OD212

CJ1W-OD232

CJ1W-OD262

XW2R-J34G-C3

XW2R-J34G-C4

XW2R-E34G-C3

XW2R-E34G-C4

XW2R-P34G-C3

XW2R-P34G-C4

CJ1W-MD231

CJ1W-MD233

CJ1W-MD261

CJ1W-MD263

CJ1W-MD232

CJ1W-MD563

XW2D-20G6

XW2D-40G6

XW2D-40C6

XW2D-40G6-RF

XW2D-40G6-RM

XW2B-20G5

XW2B-20G4

XW2B-40G5

XW2B-40G4

XW2C-20G6-IO16

XW2C-20G5-IN16

XW2E-20G5-IN16

XW2F-20G7-IN16

XW2F-20G7-OUT16

XW2N-20G8-IN16

CJ1W-INT01

CJ1W-IDP01

CJ1W-B7A14

CJ1W-B7A04

CJ1W-B7A22

CJ1W-CRM21

3G8F7-CRM21

3G8F8-CRM21

CJ1W-PTS15

CJ1W-PTS51

CJ1W-PTS16

CJ1W-PTS52

CJ1W-AD042

CJ1W-AD081-V1

CJ1W-AD041-V1

CJ1W-DA042V

CJ1W-DA08V

CJ1W-DA08C

CJ1W-DA041

CJ1W-DA021

CJ1W-MAD42

CJ1W-PDC15

CJ1W-TC001

CJ1W-TC002

CJ1W-TC003

CJ1W-TC004

CJ1W-TC101

CJ1W-TC102

CJ1W-TC103

CJ1W-TC104

CJ1W-NC214

CJ1W-NC414

CJ1W-NC234

CJ1W-NC434

XW2Z-100J-G13

XW2Z-300J-G13

XW2Z-100J-G16

XW2Z-300J-G16

XW2Z-100J-G5

XW2Z-300J-G5

XW2Z-100J-G8

XW2Z-300J-G8

XW2Z-100J-G9

XW2Z-500J-G9

XW2Z-10MJ-G9

XW2Z-100J-G12

XW2Z-500J-G12

XW2Z-10MJ-G12

XW2Z-100J-G1

XW2Z-500J-G1

XW2Z-10MJ-G1

XW2Z-100J-G4

XW2Z-500J-G4

XW2Z-10MJ-G4

XW2Z-C50X

XW2Z-100X

XW2Z-200X

XW2Z-300X

XW2Z-500X

XW2Z-010X

XW2B-20G4

XW2B-20G5

XW2D-20G6

XG5M-5032-N

XG5S-5022

XW2Z-100F

XW2Z-150F

XW2Z-200F

XW2Z-300F

XW2Z-500F

XW2Z-010F

XW2Z-15MF

XW2Z-20MF

CJ1W-NC113

CJ1W-NC213

CJ1W-NC413

CJ1W-NC133

CJ1W-NC233

CJ1W-NC433

CJ1W-SP001

XW2B-20J6-1B

XW2B-40J6-2B

XW2B-40J6-4A

XW2Z-050J-A14

XW2Z-100J-A14

XW2Z-050J-A16

XW2Z-100J-A16

XW2Z-050J-A15

XW2Z-100J-A15

XW2Z-050J-A17

XW2Z-100J-A17

XW2Z-050J-A18

XW2Z-100J-A18

XW2Z-050J-A20

XW2Z-100J-A20

XW2Z-050J-A19

XW2Z-100J-A19

XW2Z-050J-A21

XW2Z-100J-A21

CJ1W-CT021

XW2Z-050B

XW2Z-100B

XW2Z-150B

XW2Z-200B

XW2Z-300B

XW2Z-500B

CJ1W-V680C11

CJ1W-V680C12

CJ1W-SRM21

CJ1W-AD04U

CJ1W-PH41U

CJ1W-NC281

CJ1W-NC481

CJ1W-NC881

CJ1W-NCF81

CJ1W-NC482

CJ1W-NC882

CJ1W-NCF82

XS5W-T421-AMD-K

XS5W-T421-BMD-K

XS5W-T421-CMD-K

XS5W-T421-DMC-K

XS5W-T421-GMC-K

XS5W-T421-JMC-K

NETSTAR-C5E SAB 0.5 × 4P

KETH-SB

FAE-5004

MPS588

KETH-PSB-OMR

PNET/B

XS6G-T421-1

CJ1W-EIP21

W4S1-03B

W4S1-05B

W4S1-05C

CJ1W-SPU01-V2

WS02-EDMC1-V2

WS02-EDMC1-V2L05

HMC-EF183

HMC-EF283

HMC-EF583

CJ1W-NC271

CJ1W-NC471

CJ1W-NCF71

CJ1W-NCF71-MA

FNY-W6003-A5

FNY-W6003-01

FNY-W6003-03

FNY-W6003-05

FNY-W6003-10

FNY-W6003-20

FNY-W6003-30

FNY-W6022

JEPMC-W6003-A5

JEPMC-W6003-01

JEPMC-W6003-03

JEPMC-W6003-05

JEPMC-W6003-10

JEPMC-W6003-20

JEPMC-W6003-30

JEPMC-W6022

JEPMC-REP2000-E

CJ1W-SCU22

CJ1W-SCU32

CJ1W-SCU42

CJ1W-SCU21-V1

CJ1W-SCU31-V1

CJ1W-SCU41-V1

CJ1W-SCU22

CJ1W-SCU32

CJ1W-SCU42

CJ1W-SCU21-V1

CJ1W-SCU31-V1

CJ1W-SCU41-V1

CJ1W-ETN21

CJ1W-CLK23

3G8F7-CLK23-E

CS1W-RPT01

CS1W-RPT02

CS1W-RPT03

CJ1W-TB101

S3200-HCCB101

S3200-HCCB501

S3200-HCCB102

S3200-HCCB502

S3200-HCCB103

S3200-HCCO101

S3200-HCCO501

S3200-HCCO102

S3200-HCCO502

S3200-HCCO103

S3200-COCF2571

S3200-COCF2071

S3200-CN201-20-20

S3200-CN501-20-20

S3200-CN102-20-20

S3200-CN152-20-20

S3200-CN202-20-20

S3200-CN201-20-25

S3200-CN501-20-25

S3200-CN102-20-25

S3200-CN152-20-25

S3200-CN202-20-25

S3200-CN201-25-25

S3200-CN501-25-25

S3200-CN102-25-25

S3200-CN152-25-25

S3200-CN202-25-25

CAK-0057

CJ1W-FLN22

F-LINE-E 0.5mm × 4P

CTP-LAN5 0.5mm × 4P

F-LINE-E 0.5mm × 4P

CTP-LAN5 0.5mm × 4P

MPS588

MP588-C

CJ1W-DRM21

CJ1W-PRM21

CJ1W-IC101

CJ1W-II101

CJ1W-CIF21
